Aluminum oxide polyester film is a transparent aluminum oxide layer deposited on the surface of BOPET film substrate by physical vapor deposition.Its properties include good thermal stability, high temperature resistance, high strength, and stable chemical properties.Compared to co-extruded films, coated films, and ordinary aluminum films, transparent aluminum films are more environmentally friendly, with superior barrier and printing properties. They provide better transparency, visibility, and printing adaptability, making them suitable for packaging products such as food, pharmaceutical products, medical materials, and electronic products that require higher barrier performance.

Models as blow:

1：Transparent high barrier PET ALOx Film (No coatig series: can be pasteurized)：

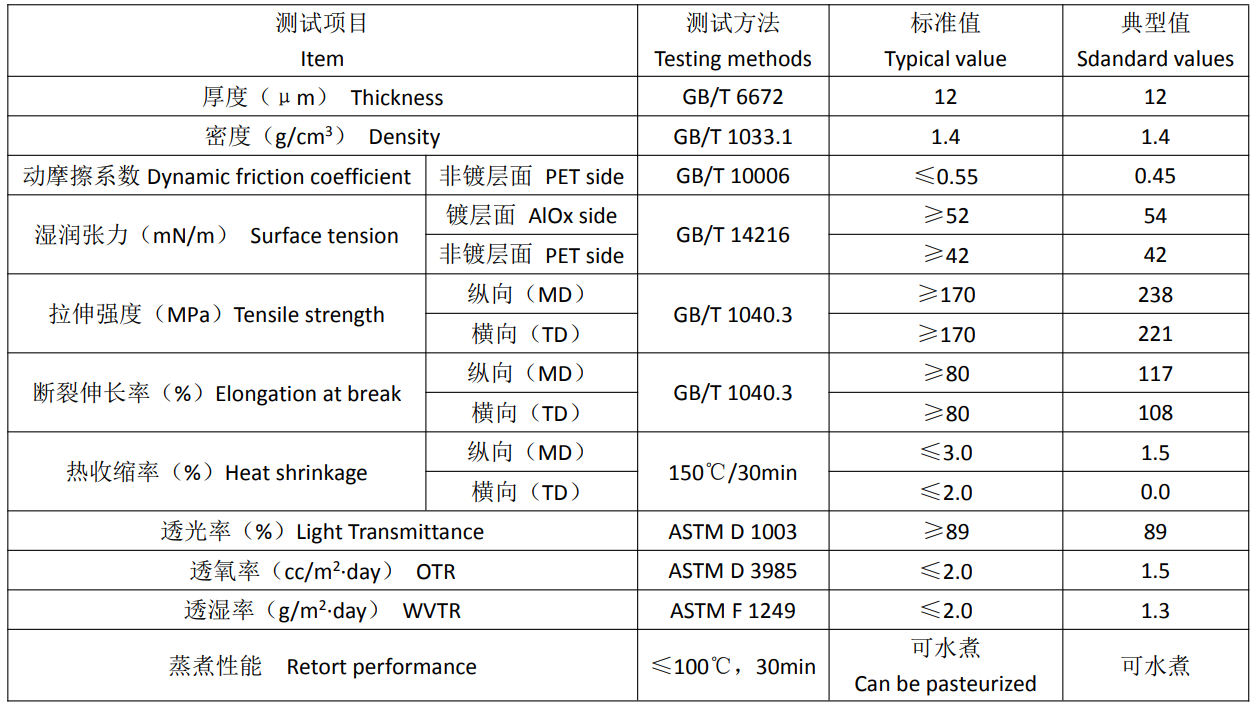

PET-AlOx-020

PET-AlOx-010

PET-AlOx-D01

2：Transparent high barrier PET ALOx Film (Top coatig series)：

PET-AlOx-T

3：Transparent high barrier PET AlOx film  (Retorting coating series: can be retorted)：

PET-AlOx-TZ

PET-AlOx-TZ01

PET-AlOx-TH

PET-AlOx-DTZ

Common Compound Structures

AlOx (printing) / CPP (PE)，BOPP (PET) printing / AlOx / CPP (PE)，AlOx-T (printing) / CPP (PE), AlOx (printing) / PA / RCPP, PA (printing) / AlOx / RCPP AlOx-TZ printing / RCPP or PET printing / AlOx-TZ / RCPP

1、High barrier and environmental friendly packaging material with excellent oxygen barrier and moisture barrier performance,

2、High transparency, light transmittance > 89%;

3、High Al adhesion, greater than 3.0N/15mm, and it has goodprinting composite performance;

4、Can be microwaved heating, and detected by metal detectors;

5、Excellent processing performance with wide application range,can replace KPET, KBOPP,KBOPA, VMPET, SiOx, BOPA, alumi-num foil, EVOH and co-extruded film and other packaging mate-rials;Reach FDA, EU, REACH, RoHS and GB 4806.7 and other

6、regulatory requirements.

1、Widely used in Packaging barrier for food such as meat, cookedfood, biscuits, candy, dried fruit, tea, coffee, chocolate, dehydrat-ed food,seafood,flavors,etc.And electronics, daily chemicals.phamaceuticals, etc.;

2、Replace the K (PyDC) coated film to greatly improve the barrier properties of the product and reduce the environmental pollution caused by PvDC. lt can be boiled and steaming cooked. lt has better visibility and no yellowing;

3、Replacement of BOPA, EVOH and co-extruded film,. it can greatly reduce the cost, greatly improve the barrier performance of the product, and with better adaptability,

4、 In place of SiOx, it can greatly reduce the cost. lt has softer hand feeling, beller transparency, better processing performance and better environmental recycling treatment;

5、Replacing the use of aluminum foil, the composite strength is higher, the cost is lower, it can be see-through, microwave heating.and can be detected by metal detector;

6、lt can replace the common metallized film, has better barrier prop-erty and higher composite strength.
