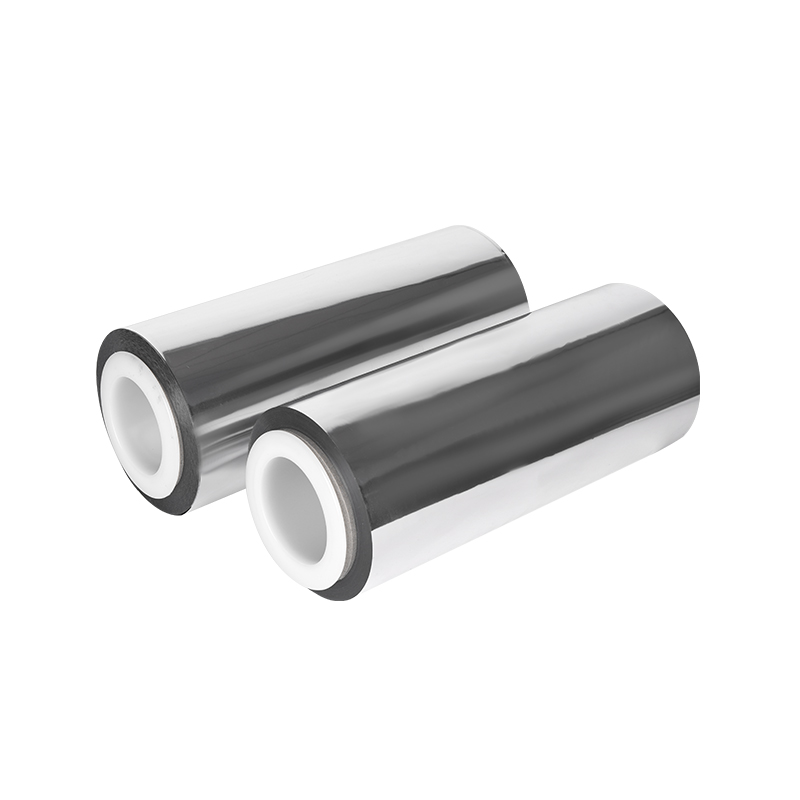

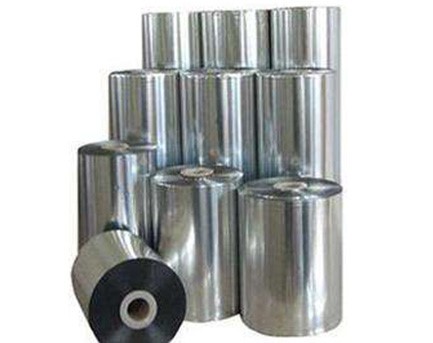

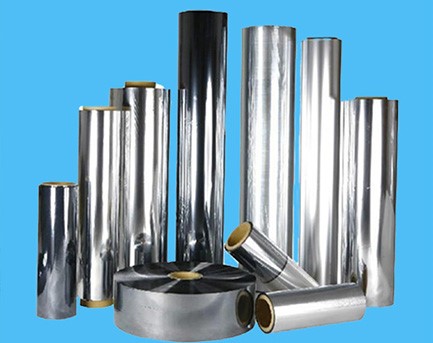

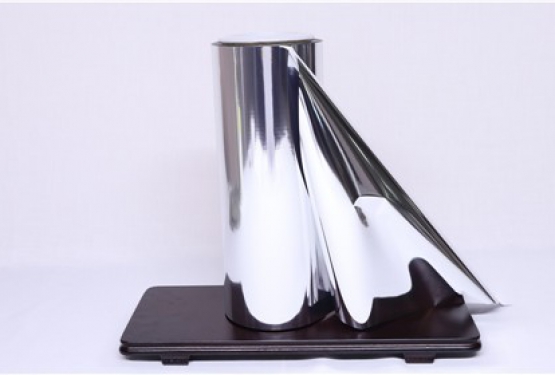

Vacuum Metallized PVC Film is produced by evaporating and depositing aluminum onto PVC film.It features a metallic appearance and can be used for labels and decorative materials.With excellent barrier properties, it is suitable for food packaging, flavorings, and many other applications.
Vacuum Metallized PVC Film is produced by evaporating and depositing aluminum onto PVC film.It features a metallic appearance and can be used for labels and decorative materials.With excellent barrier properties, it is suitable for food packaging, flavorings, and many other applications.
1. It has a very good metallic luster. The aluminum layer has strong adhesion, a uniform coating, excellent composite properties, which can significantly enhance the color saturation, and does not blister, wrinkle or peel off.
2. Its printing performance is excellent. It can undergo post-printing processes such as UV treatment, coating, and foil stamping on some composite surfaces

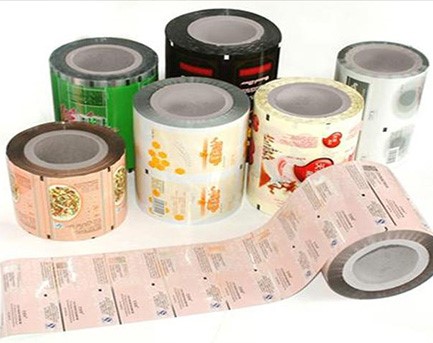

It can be used for label materials, self-adhesive materials, architectural decoration materials, etc. It can also be used for cigarette packaging, toothpaste packaging boxes. Wine, tea, medicine boxes, Christmas gift boxes, gift wrapping paper.
| 物性项目Item | 测试方法Testing Methods | 单位Units | 标准值Standard | 典型值Typical Values | |||
| BB/T 0030-2019 | |||||||
| 厚度Thickness | GB/T6672 | um | ─ | 30~250 | |||
| 铝层厚度Aluminum Thickness | GB/T15717 | Ω/□ | ≤2.5 | 2.0 | |||
| 热收缩率Heating Shrinage Rate | 100±2℃10min | % | ─ | 10 | |||
| 密度Density | GB/T 1033 | g/cm³ | 0.9±0.2 | 1.35 | |||
| 镀层附着力Aluminum Adhesion | BB/T0030-2019 | % | ≤20 | 1 | |||
| 镀层均匀度Aluminum Uniformity | BB/T0030-2019 | % | ±15 | 5 | |||
| 湿润张力Surface Tension | 非铝层面Non-Al side | GB/14216-2008 | mN/m | ≥36 | 38 | ||
| 拉伸强度Tensile Strength | 纵向MD | GB/T1040.3 | Mpa | ≥46 | 52 | ||
| 横向TD | ≥46 | 50 | |||||
| 摩擦系数Coefficient of Friction | 非铝层面Non-Al side | GB/10006 | ─ | ≤0.65 | 0.62 | ||
| 透氧率OTR | GB/T31354-2014 | cc/㎡·24h | ─ | ─ | |||
| 透湿率WVTR | GB/T26253-2010 | g/㎡·24h | ≤15 | 10.0 | |||
Important Notes:
The above data, obtained from our internal testing, is provided for reference only to assist customers in sample evaluation or product use.
The final performance of the product depends on specific production processes, and improper use may cause irreversible damage.
As equipment, processing condtions, and end-use requirements vary across manufacturers, our company shall only be responsible for the
performance of the film itself.
If you have any questions or wish to know more information, please feel free to leave a message！
