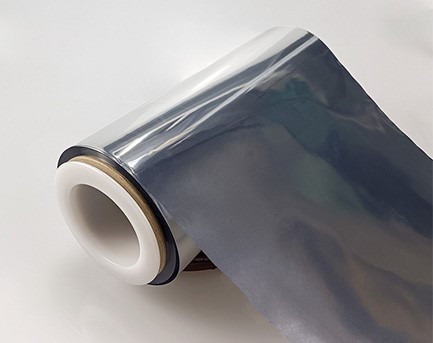

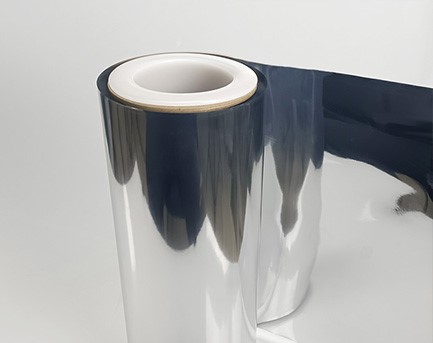

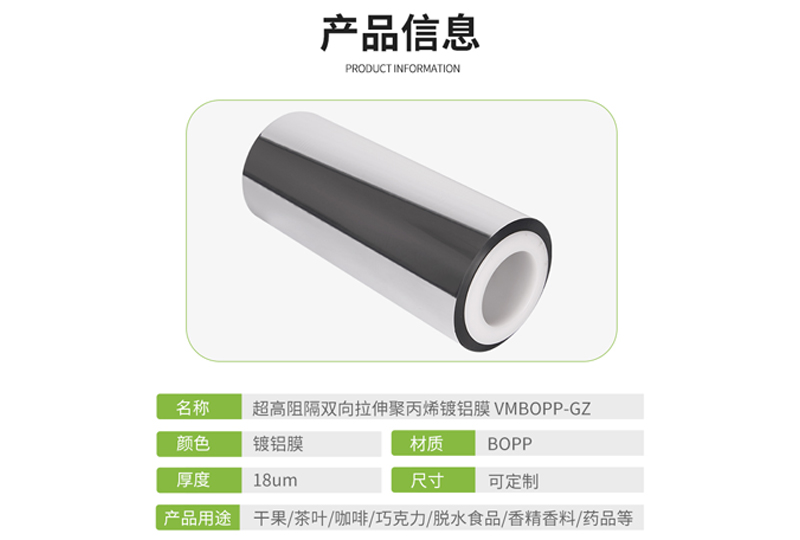

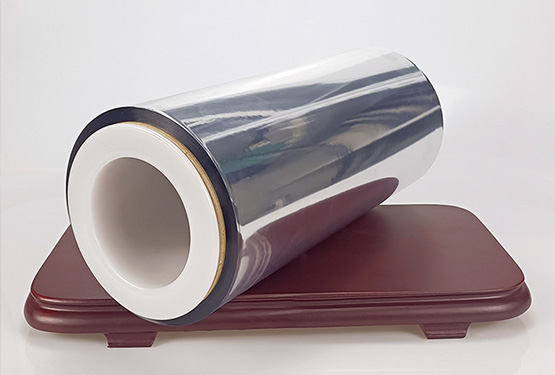

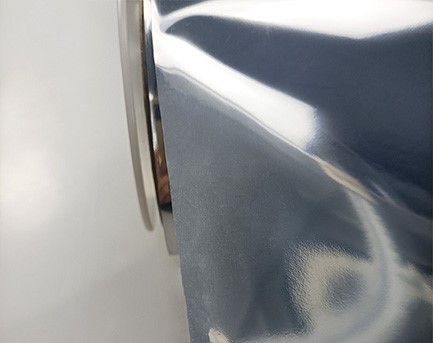

    High Barrier BOPP Metallized Film VMBOPP-GZ

    Product Introduction

    The High Barrier BOPP Metallized Film VMBOPP-GZ has excellent oxygen and moisture barrier properties as well as excellent adhesion of the aluminum layer. It can replace VMPET or aluminum foil and is used as the middle layer in a three-layer structure, making the composite material homogenous

    Consultation quote
    Contact via whatsapp
    二维码

    Product description

    1:Excellent adhesion of aluminum layer, greatly increasing the composite strength with other materials.

    2:Excellent oxygen and moisture barrier properties, extending the shelf life;

    3:Replacement of VMPET or aluminum foil, it is used in the middle layer of the three-layer structure to homogenize the composite material.

    4:The material complies with FDA, EU, REACH, RoHS and GB4806.7 and other regulatory requirements, and is environmentally friendly, safety and reliability.

    Product performance characteristics

    1:Excellent adhesion of aluminum layer, greatly increasing the composite strength with other materials.

    2:Excellent oxygen and moisture barrier properties, extending the shelf life;

    3:Replacement of VMPET or aluminum foil, it is used in the middle layer of the three-layer structure to homogenize the composite material.

    4:The material complies with FDA, EU, REACH, RoHS and GB4806.7 and other regulatory requirements, and is environmentally friendly, safety and reliability.

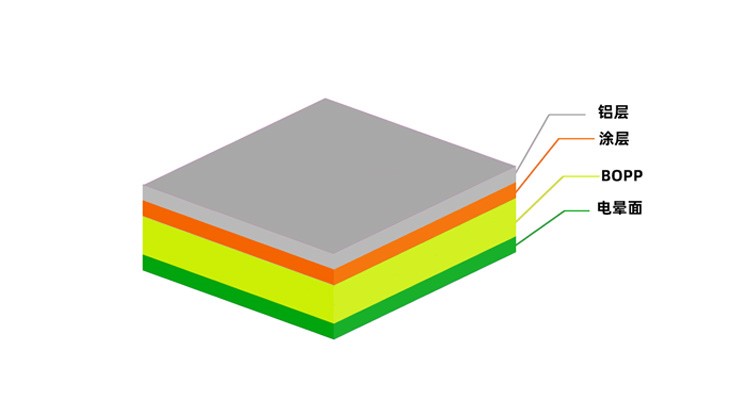

    Product Structure

    11

    Attention:

    In order to maintain the best performance of the material, the material should be stored in

    an environment with the temperature below 30°C and a humidity of about 50%RH.

    Product Application

    1:In place of aluminum foil and VMPET, better processing performance and enviromental recycling;

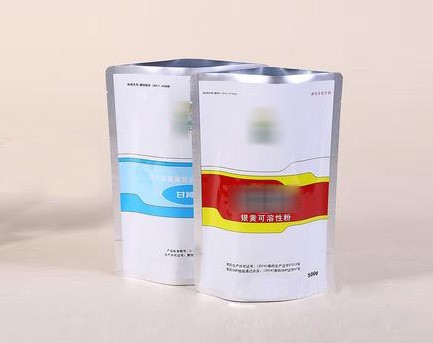

    2:Application for the pacakge of dried fruits, tea, coffee, chocolate, dehydrated food,dried flavors and fragrances, medicines, etc.

    3:Light blocking: Avoid the impact of light on the product, especially on items that are sensitive to light
    1213141516

    Physical Property Table

    参 数 指 标(型号VMBOPP-GZ)
                                                                            测试项目 Test Item                          典型值 Typical value
                                                                          厚度 Thickness(μm)                                        18
                                                                   光密度 Optical density(OD)                                        2.3
                                                       铝层厚度 Aluminum layer thickness (Ω/□)                                        1.2
                                      铝层附着力(N/15mm)Aluminum layer adhesion(N/15mm)  EAA                                        3.5
                                                                  氧气透过率 OTR(cc/m³.24h)                                       0.12
                                                              水蒸气透过率 WVTR(g/m³.24h)                                       0.28
    湿润张力 Wet tension (mN/m)                   镀铝面 Metallized surfece                                        42
                  非镀铝面 Non-metallized surface                                        36
    拉伸强度(%)Tensile strength%(MPa)                           纵向  MD97
                              横向  TD                                       250
    断裂伸长率(%)Elongation at break(%)                           纵向  MD                                       165
                              横向  TD                                        33
    热收缩率(%)Heat shrinkage rate(%)120℃/2min                           纵向  MD                                       1.83
                              横向  TD                                        0.87

    Important Notes:

    The above data, obtained from our internal testing, is provided for reference only to assist customers in sample evaluation or product use.

    The final performance of the product depends on specific production processes, and improper use may cause irreversible damage.

    As equipment, processing condtions, and end-use requirements vary across manufacturers, our company shall only be responsible for the

    performance of the film itself.
