Semipermeable Polyester Aluminum-Coated Film Manufacturer

Product description

Semipermeable polyester aluminum-coated film, also known as semipermeable electronic film, due to its conductivity and anti-static properties, as well as its transparency, when combined into bags, the contents can be seen clearly. The aluminum layer is very thin; it has a brightness, good flatness and friction coefficient.

Product performance characteristics

1. It possesses the unique conductive property of the aluminized film, as well as transparency. When laminated into a bag, the contents can be clearly seen.

2. Anti-ultraviolet, anti-static.

3. It has the function of resisting static electricity and blocking electromagnetic wave interference.

Product Application

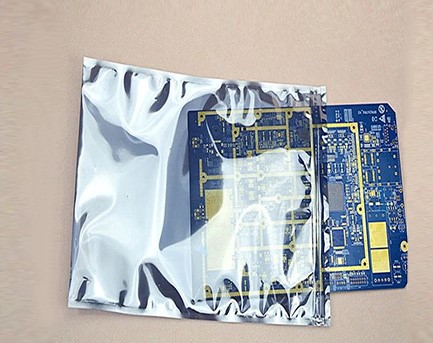

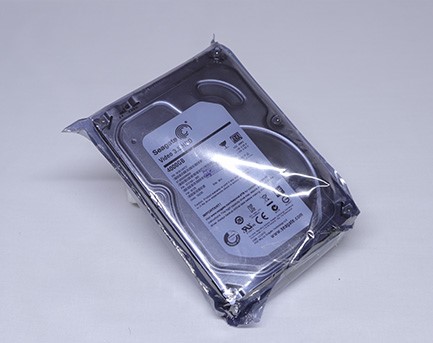

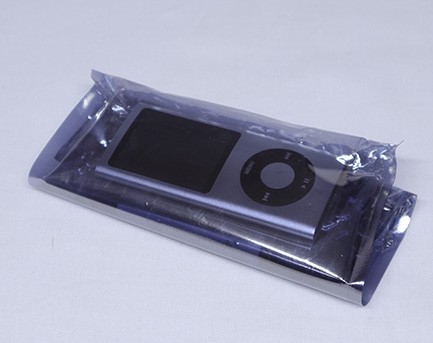

The product is widely used in the outer packaging bags of electronic products.

Physical Property Table

参考标准				常用产品型
参考标准				DZ-15	DZ-16	DZ-18	DZ-22
物性项目		测试方法	单位	标准值	标准值	标准值	标准值
厚度		GB/T 6672-2001	12	12	12	12	12
拉伸强度	MD	GB/T 1040.3	MPa	≥170	≥170	≥170	≥170
拉伸强度	TD	GB/T 1040.3	MPa	≥170	≥170	≥170	≥170
断裂伸长率	MD	GB/T 1040.3	%	≤200	≤200	≤200	Standard Item No. DZ-15 DZ-16 DZ-18 DZ-22 Item Testing methods Unit Typical Value Typical Value Typical Value Typical Value Thickness GB/T 6672-2001 12 12 12 12 12 Tensile Strength MD ≥170 ≥170 MPa ≥170 ≥170 ≥170 ≥170 TD ≥170 ≥170 ≥170 ≥170 Elongation at Break MD ≤200 ≤200 % ≤200 ≤200 ≤200 ≤200 TD ≤200 ≤200 ≤200 ≤200 Heat Shrinkage MD ≤3.0 ≤3.0 % ≤3.0 ≤3.0 ≤3.0 ≤3.0 TD ≤3.0 ≤3.0 ≤3.0 ≤3.0 Surface Tension Al side ≥48 ≥42 mN/m ≥48 ≥170 ≥48 ≥48 Non Al side ≥42 ≥170 ≥42 ≥42 Light Transmittance 林尚SL162 % 35-40% 40-45% 45-50% 65-70% Haze ASTM D-1003 % ≤3.0 ≤3.0 ≤3.0 ≤3.0 Al Uniformity ASTM D-1003 % 5 5 5 5 Al Adhesion QB/T 2358-1998 N/15mm 2.5 2.5 2.5 2.5 Technical Index Customers can customize production from 0 to 80% light transmittance according to demand.
断裂伸长率	TD	GB/T 1040.3	%	≤200	≤200	≤200	≤200
热收缩率	MD	150ºC*30min	%	≤3.0	≤3.0	≤3.0	≤3.0
热收缩率	TD	150ºC*30min	%	≤3.0	≤3.0	≤3.0	≤3.0
湿润张力	镀层面	150ºC*30min	mN/m	≥48	≥170	≥48	≥48
湿润张力	非镀层面	150ºC*30min	mN/m	≥42	≥170	≥42	≥42
透光率		林尚SL162	%	35-40%	40-45%	45-50%	65-70%
基膜雾度		ASTM D-1003	%	≤3.0	≤3.0	≤3.0	≤3.0
镀层均匀度		ASTM D-1003	%	5	5	5	5
镀层附着力		QB/T 2358-1998	N/15mm	2.5	2.5	2.5	2.5

Important Tips：

1.The data and ,information above are obtained from our company's tests, for customers' reference of sample or the product usage;

2.The final performance of the product is related to the composite process,and improper use will cause destructive damage to the product;

3.For other special requirements,it is better to contact with our technical department for more details,so that the products are more suitable for customers.
